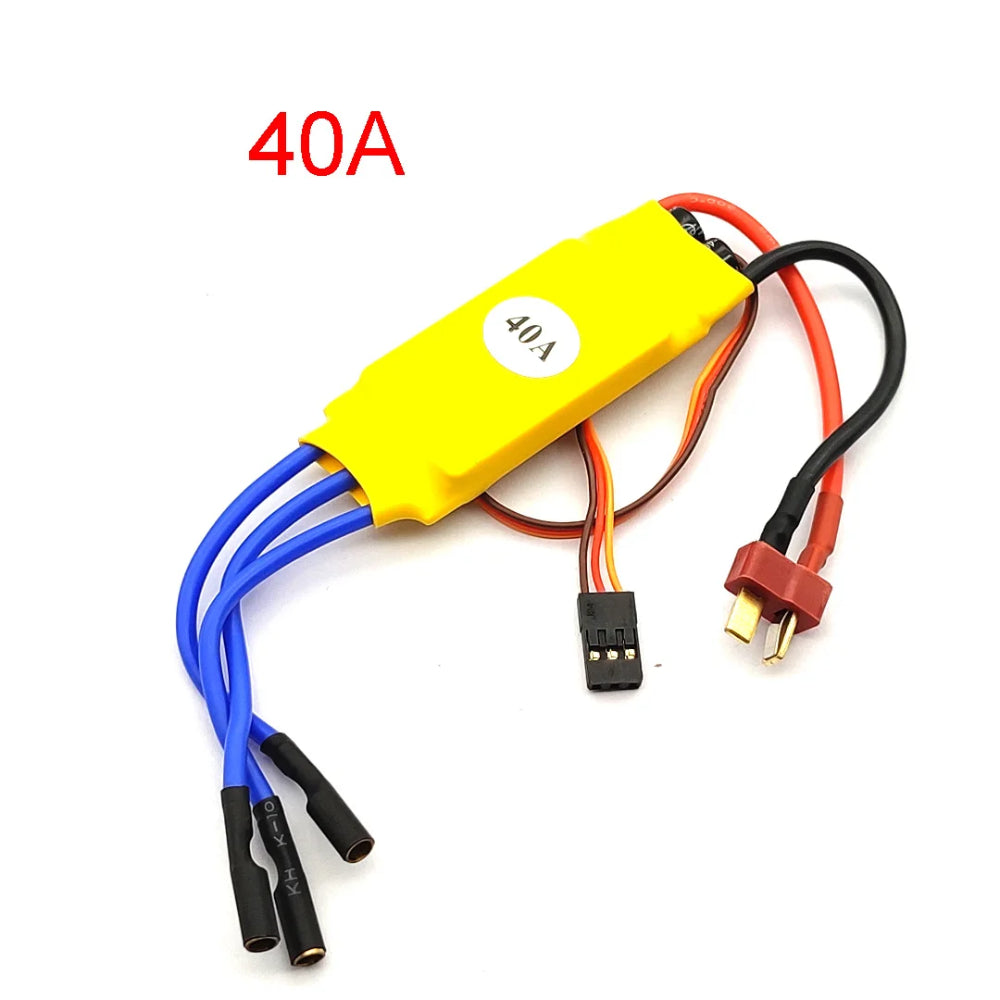

XXD 30A Brushless Motor ESC
Original price was: ₵120.00.₵100.00Current price is: ₵100.00.
The Standard XXD HW40A 40A Brushless Motor ESC is designed for use with sensorless brushless motors in a variety of RC applications, including airplanes, boats, and cars. This Electronic Speed Controller (ESC) delivers consistent and reliable power, ensuring smooth operation and responsive throttle control. It comes equipped with pre-soldered 3.5mm banana connectors for easy motor connection and a T-plug (Dean style) for secure battery connection, making it convenient for quick installation.
12 in stock
Key Features:
Over-temperature Protection: Automatically reduces power output to prevent damage if the ESC overheats.
Low Voltage Cutoff: Protects the LiPo battery by cutting off power if the voltage drops below a safe level.
Throttle Range Calibration: Allows the ESC to adapt to different transmitters, ensuring smooth and accurate throttle response.
Motor Timing Adjustment: Adjustable motor timing for optimizing performance with different motors and applications.
Programmable Functions: Settings such as brake function, battery type, and throttle range can be customized using a programming card (if supported).
Applications:
RC Planes: Provides reliable and smooth throttle control, suitable for small to medium-sized brushless motor setups.
RC Boats: Ideal for powering brushless motors in RC boats, offering high efficiency and reliability.
RC Cars: These can be used in RC cars where precise motor control and durability are essential.
Technical Specifications
- Continuous Current: 40A
- Burst Current: 50A (for up to 10 seconds)
- Input Voltage: 2-3S LiPo (7.4V to 11.1V)
- BEC Output: 5V/2A (Linear BEC, provides power to the receiver and servos)
- Motor Compatibility: Sensorless brushless motors
- PWM Frequency: 8kHz (Pulse Width Modulation frequency for motor control)
- Microprocessor: High-performance 8-bit MCU (Microcontroller Unit) for precise control
- Connectors:
- Battery Input: T-plug (Dean style), pre-soldered for a secure connection to the battery.
- Motor Output: 3.5mm bullet connectors (banana heads), pre-soldered for easy connection to the motor.
Physical Attributes
- Dimensions: Approx. 55mm x 27mm x 8mm (Length x Width x Height)
- Weight: Approx. 36g
Package Includes
- 1 x Standard XXD HW40A 40A Brushless Motor ESC With Soldered banana head and T plug
