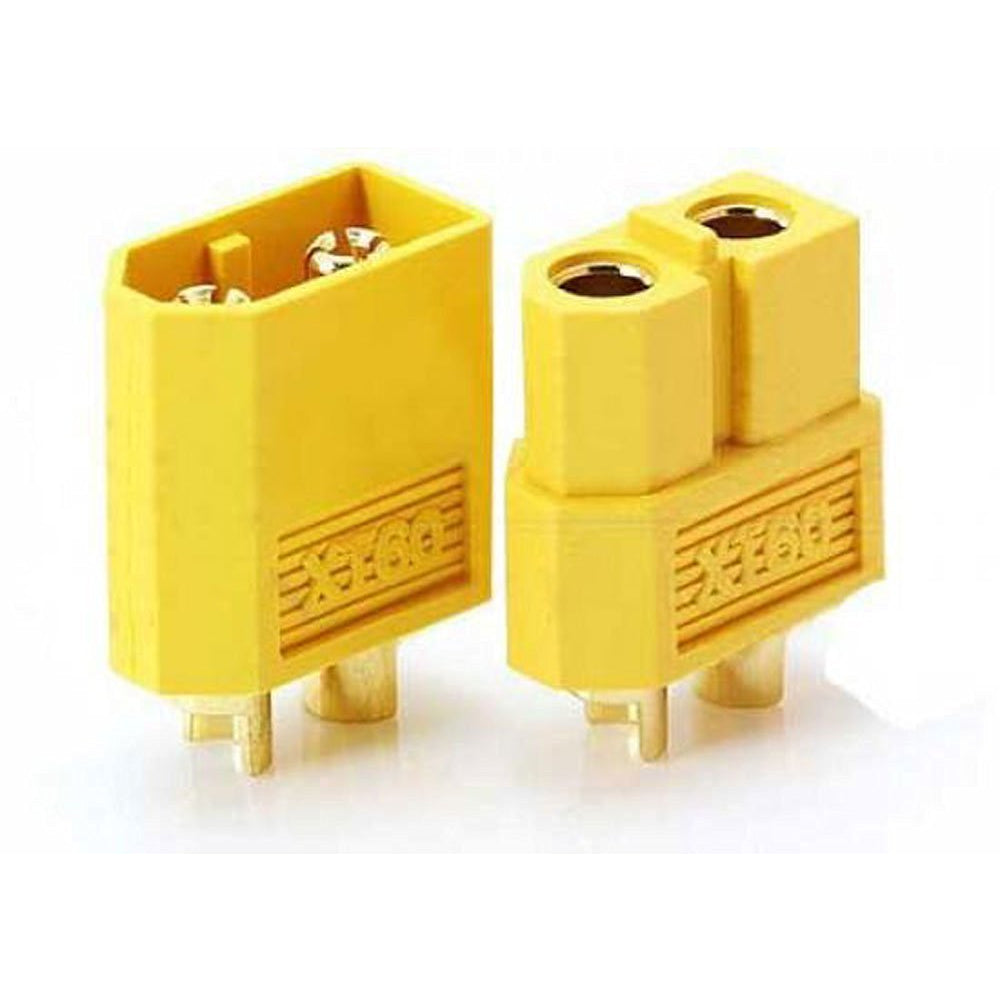

XT60 Male-Female Connector Pair for Lipo Battery
₵20.00
This is an Excellent W.S. Deans T-connector replacements. Made from high-temp Nylon and gold plated spring connectors, both included in the injection mold at the time when forming the connector. The XT60 ensures a solid high-amp connection, perfect for applications up to and beyond 65A constant. XT60, Designed by Amass to be more reliable and a better quality connection than Deans T-Connectors. There is no patent on the XT60 connector, we hope this product is sold everywhere in the world and dominates the market, reducing customers dependency on the over-priced Deans T-connector. Say ‘No’ to the Deans Connector profiteers, and use XT-60’s!
These are not cheap copy XT60 plugs. These original Nylon XT60 plugs can handle over 60A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT60 plugs.
5 in stock
Technical Details
- Manufacturer : AMASS
- Supply Current (A) : 0.07
- Connector Type : XT60H
- Gender : Male-Female
- No. of Pins : 2
- Flammability Rating : UL94V-0
- Rated Current(A) : 60
- Rated Operating Voltage (VDC) : 500
- Operating Temperature Range (°C) : -20 to 120
Features
- Mechanical mounting for cable
- Electrical mounting soldered
- Contact plating Gold flash
- Spatial Orientation Straight
- Compatible for Wire size up to 12AWG
Physical Attributes
- Contact Material : Brass
- Body Material : polyamide
- Operating Temperature Range (°C) : -20 to 120
- Color: Yellow
- Weight (gm) : Â 2.4g (each)
Package Includes
- 1 x XT60 Male-Female Connector Pair for Lipo Battery
