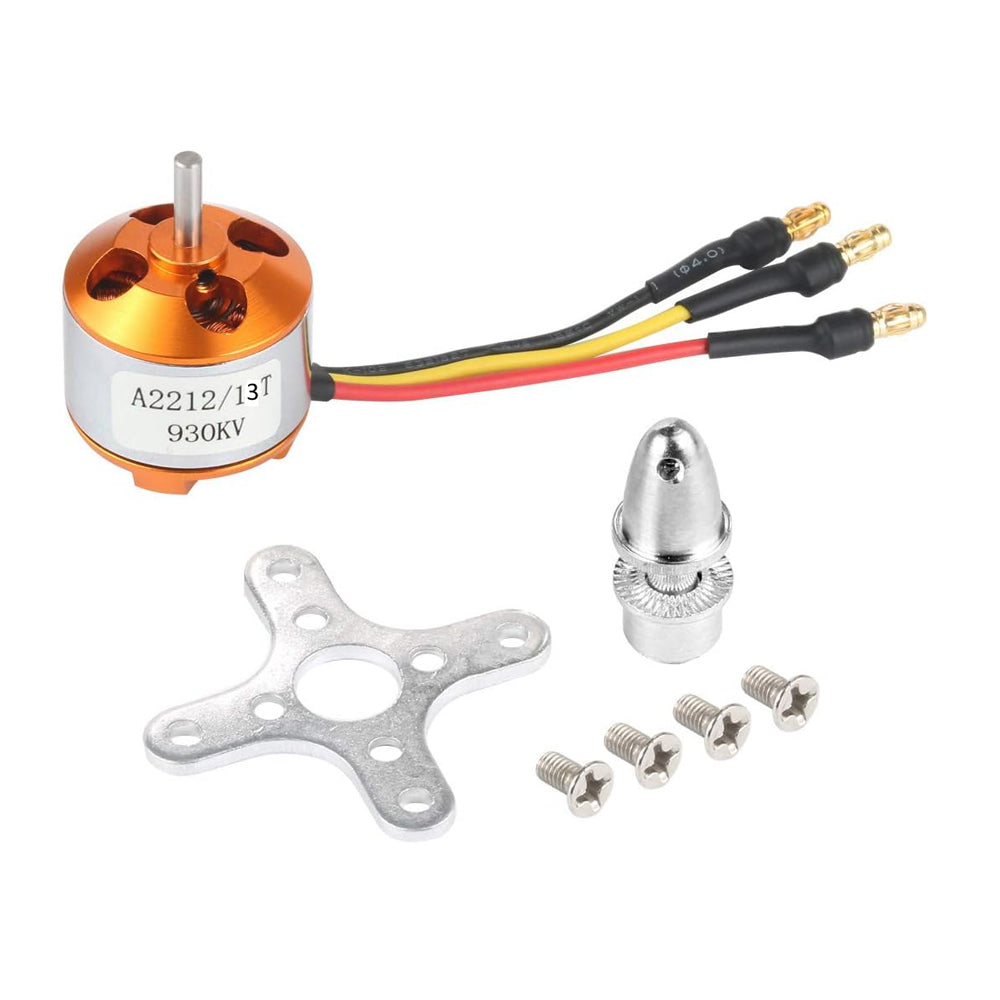

A2212 930KV/1200KV/2450KV/2700KV Brushless Motor
₵100.00
The A2212 brushless motor with various KV ratings (930KV, 1200KV, 2450KV, and 2700KV) and welded banana connectors are commonly used in the hobbyist and radio-controlled (RC) community.
4 in stock
Let’s break down some key points:
A2212 Motor:
Type: Brushless motor.
Application: Typically used in RC aircraft, drones, or other hobbyist projects.
Size: The “A2212” refers to the motor’s size and specifications.
KV Ratings:
930KV: Lower KV ratings are suitable for applications that require more torque and less speed. Commonly used for larger propellers or slower-moving aircraft.
1200KV: This is a mid-range KV rating, offering a good balance between torque and speed. Suitable for various applications.
2450KV and 2700KV: Higher KV ratings are used for applications that require higher speed and RPM. These are often used in smaller and faster aircraft or drones.
Welded Banana Connector:
Connector Type: Banana connectors are a type of plug commonly used in RC hobby applications.
Welded: Indicates that the banana connectors are permanently attached to the motor’s wires, providing a secure and reliable connection.
Technical Details
- KV: 930KV/1200KV/2450KV/2700KV
- Maximum efficiency: 80%
- No. of cells: 2 -3 Li-Poly
- Voltage:11.1V
Features
- Brushless Operation
- Higher Efficiency
- Extended Lifespan
- Reduced Electromagnetic Interference (EMI)
- Compact and Lightweight
- Better Heat Dissipation
- Higher Power-to-Weight Ratio
- Precise Speed Control
- Regenerative Braking
- Reduced Wear and Tear
Physical Attributes
- Weight (gm): 60
Specifications
| Model | KV(rpm/V) | Voltage(V) | Prop | Load Curr(A) | Pull (g) | PWR(W) | (g/W) | Lipo Cell |
|---|---|---|---|---|---|---|---|---|
| A2212 | 930 | 11.1 | 1060 | 9.8 | 660 | 109 | 6.1 | 2-3S |
| A2212 | 1200 | 11.1 | 8060 | 17.2 | 898 | 183 | 4.7 | 2-3S |
| A2212 | 2450 | 11.1 | 6×3 | 25.2 | 815 | 280 | 2.9 | 2-3S |
| A2212 | 2700 | 11.1 | 6030 | 27.2 | 998 | 347 | 2.6 | 2-3S |
Motor Outline Drawing
Package Includes
- A2212 930KV/1200KV/2450KV/2700KV Brushless Motor Welded Banana Connector Optional
- 1 x Accessories set
