TCRT5000 Line Tracking Sensor Module
Original price was: ₵20.00.₵18.00Current price is: ₵18.00.

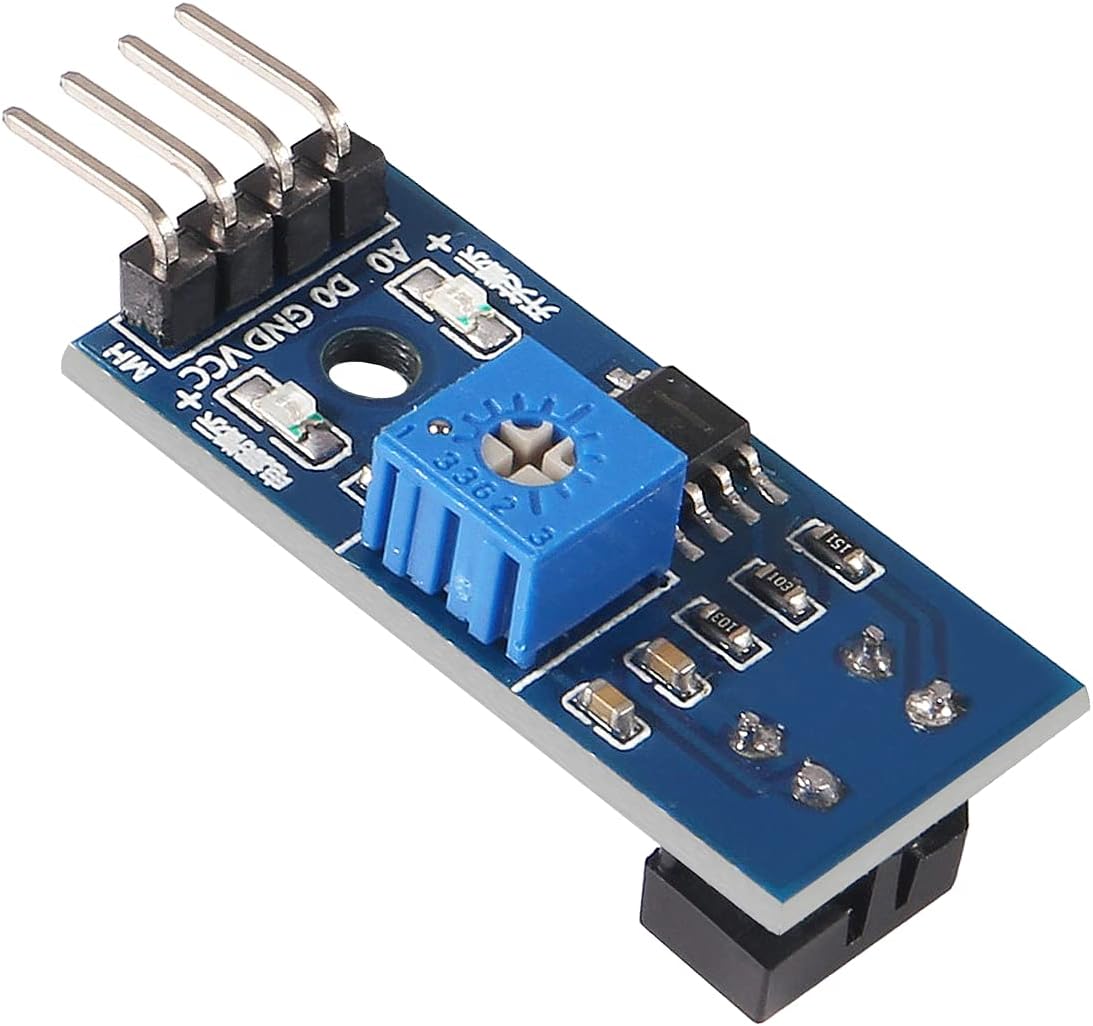

This is TCRT 5000 Dual Channel Line Tracking sensor module.
This IR reflective sensor Module used TCRT5000 IR Sensor to detect color and distance. This sensor module consists of an IR transmitter & an IR receiver. IR Transmitter continuously emits IR signal which is then reflected by an obstacle and is then detected by the IR receiver.
TCRT5000 Infrared Reflective Sensor Module is often used in line following robots, object sorting Robots because this module can sense if a surface is white or black. The measuring distance range from 1mm to 8mm and the central point is about 2.5mm.
There is also an onboard potentiometer to adjust the sensitivity. The infrared diode will be emitting the infrared continually when the module is powered ON, when the emitted infrared light has not been reflected or the strength is not big enough, the receiver diode will in the off state and output pin i.e. DO will be LOW.
Note: The new update with this product is about pin locations. The image shows the sequence of 1) VCC. 2) GND. 3)D0. 4)A0. but a new sequence is 1) VCC. 2)D0. 3)A0. 4) GND.
20 in stock
Technical Details
- Operating Voltage: 3.3 to 5V
- Detection Distance: 1 to 8mm
- Supply Current: 0.015mA
- Optimal Sensing Distance: 3mm
- Length: 32mm
- Width: 14mm
- Height: 12mm
- Weight: 3g
Features
- Reflective infrared sensor with indicator light
- Built-in potentiometer for sensitivity control
- On-board LM393 voltage comparator and TCRT5000L sensor
- Signal output instructions with LED indicator
- Direct connection to microcontroller IO
- Adjustable signal detection sensitivity
- Additional circuit reserved (P3 voltage)
- Digital switch output (0 and 1)
- Fixed bolt hole for easy installation
Pin Out
- VCC: Power supply (3.3V to 5V)
- GND: Ground
- D0: Digital output (signal from sensor, 0 or 1)
- A0: Analog output (sensor’s analog signal)
Application:
- Meter Pulse Data Sampling: Used in energy meters for pulse counting and data sampling.
- Fax Paper Shredders Detection: Detects paper movement in fax machines and shredders.
- Obstacle Detection: Identifies obstacles in robotics and automated systems for navigation.
- Black and White Line Detection: Used in line-following robots and automation systems to detect black and white paths.
