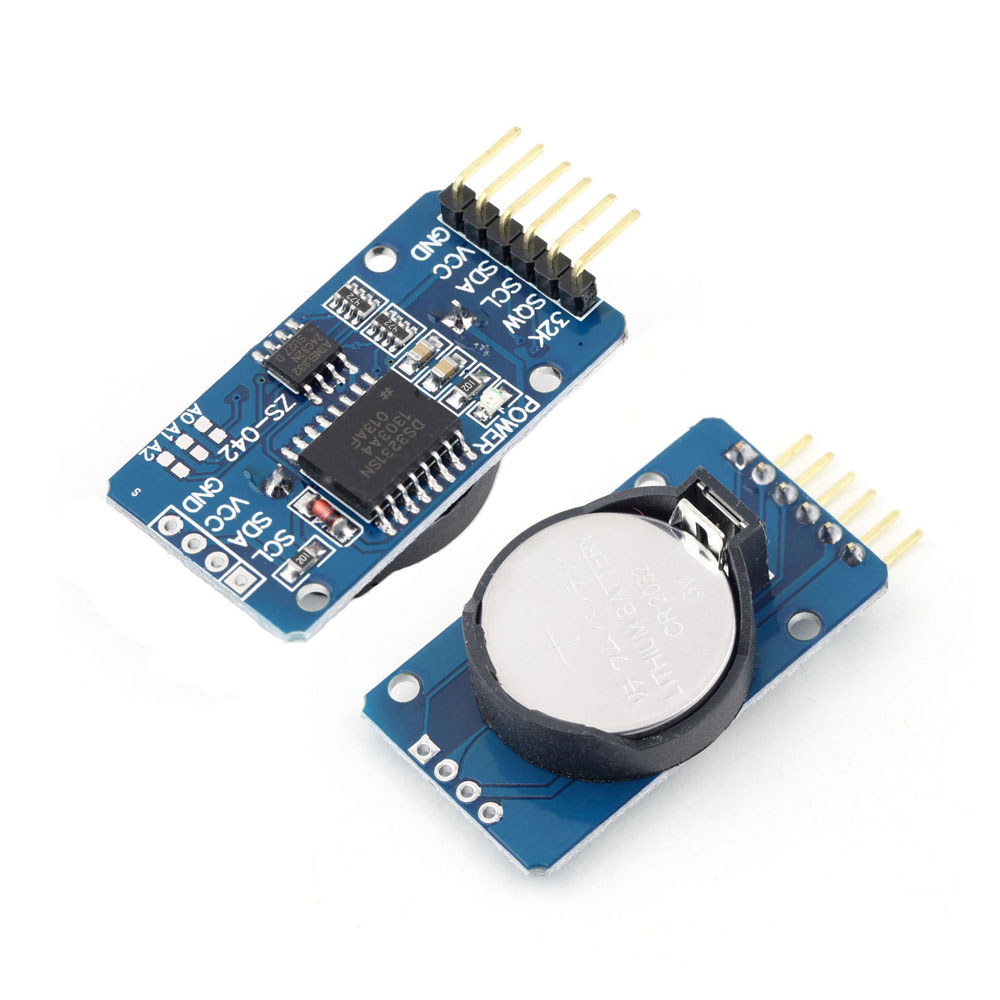

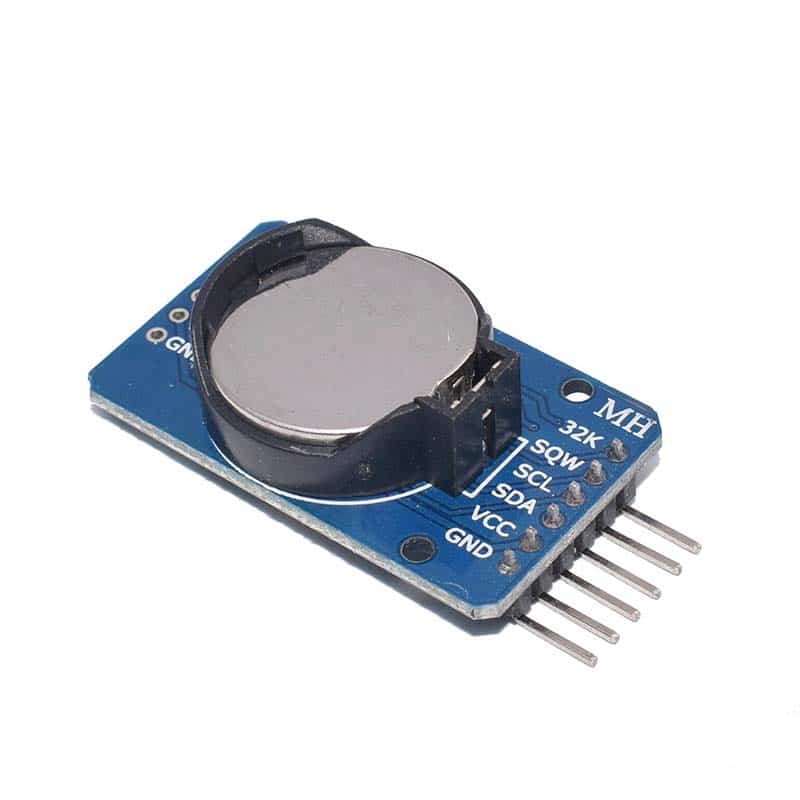

DS3231 AT24C32 RTC Module Precise Real Time Clock I2C
₵45.00
DS3231 RTC is a Precise Real-Time Clock Module with 32Kbit EEPROM and a built-in 10-bit temperature sensor having a resolution of 0.25C.
The DS3231 RTC module Precise Real-Time Clock Module is a low-cost, extremely accurate I²C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted.
The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The ds3231 Arduino is available in commercial and industrial temperature ranges and is offered in a 16-pin, 300-mil SO package.
5 in stock
Technical Details
- Item Type: RTC Module
- Operating Voltage (VDC): 2.7 to 5.5
- Model No.: DS3231
- Accuracy: ±2ppm from 0°C to +40°C, ±3.5ppm from -40°C to +85°C
- Battery Holder: 2032 Coin Battery
- I2C Interface: Fast (400kHz) I2C Interface
- EEPROM: AT24C32 32Kbit Serial I2C
- Date Format: Time: HH:MM: SS (12/24 hr), Date: YY-MM-DD-dd
- Operating Temperature (°C): -40 to 85
- Sensor Outputs: 10-bit, ±3°C Accuracy, 0.25°C resolution
- Dimensions (L x W x H) mm: 38 x 22 x 14
- Weight (g): 8
Features
- Two Time-of-Day Alarms
- Digital Temperature Sensor Output
- Register for Aging Trim
- DS3231 RTC with 2032 Battery Holder
- Highly Accurate RTC Manages All Timekeeping Functions
- Real-Time Clock Tracks Time, Date, Day, and Leap Years (Up to 2100)
- Configurable I2C Address for AT24C32 via SMD Jumpers (A0, A1, A2)
- Programmable Square-Wave Output Signal
- Battery-Backup Input for Continuous Timekeeping
- Low Power Operation Extends Battery-Backup Runtime
Applications :
- Real-time clock for precise timekeeping
- Used in data loggers for timestamping events
- Ideal for alarms, timers, and scheduling tasks
- Battery backup ensures continuous operation
- Works with microcontrollers via I2C/IIC interface
- Used in automation, IoT, and embedded systems
