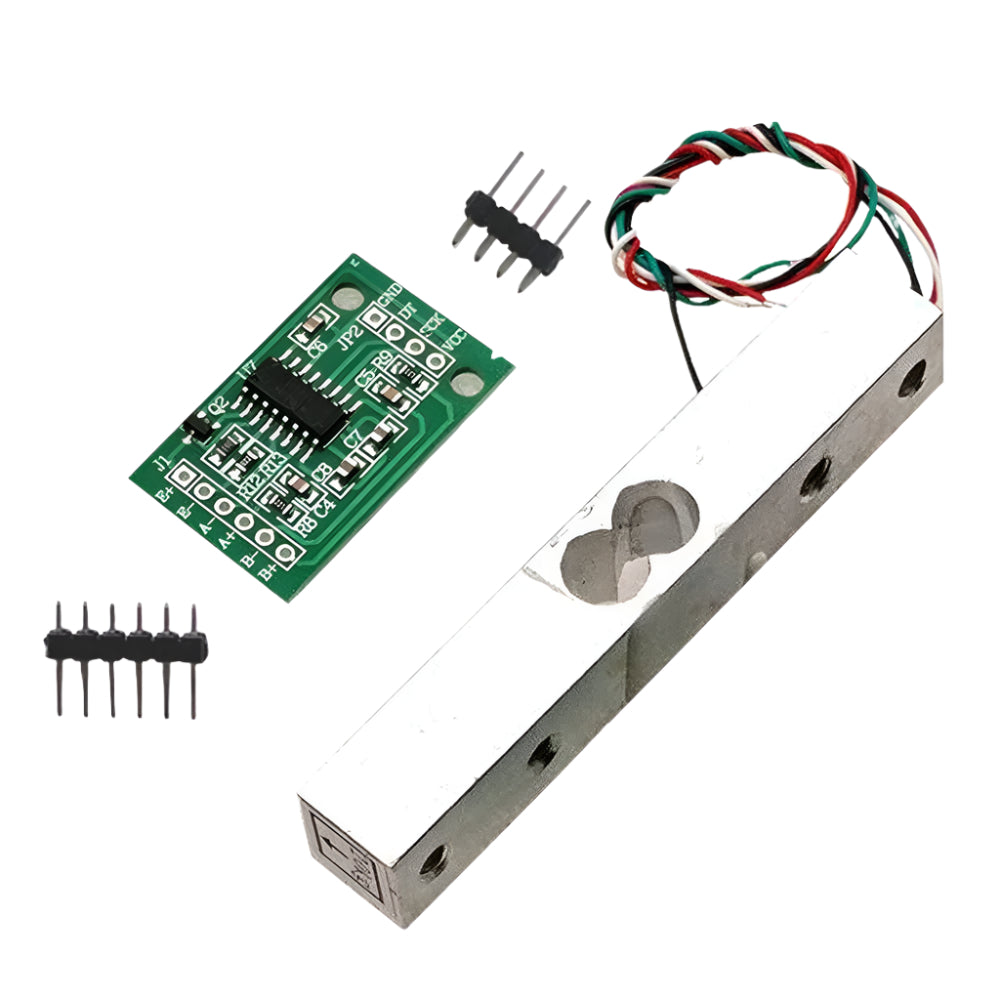

5kg Load Cell Weight Sensor with HX711 ADC Converter
Original price was: ₵40.00.₵35.00Current price is: ₵35.00.
The 5KG small range weighing pressure sensor is a strain gauge-based load cell that can measure weights up to 5 kilograms. It works in conjunction with the HX711AD weighing module, a precision 24-bit analog-to-digital converter (ADC) specifically designed for weigh scales and industrial control applications to provide accurate digital weight measurements.
4 in stock
Specification
Aluminium alloy with pre-attached strain gauges.
Measures force up to 1kg.
Input: Red+, Black- | Output: Green+, White-.
Excitation voltage: 5-10V DC.
Low-noise PGA with 32, 64, 128 gain options.
Pin-driven controls, no programming needed.
10SPS or 80SPS selectable data rate.
Bracket (Tray) Diameter: 10cm.
Operating voltage: 3.3V–5V (recommended 5V).
Appearance height: 3.5cm (including pillar).
HX711 24-bit high-precision ADC module.
Post-calibration accuracy: Within 1g.
Operating current: <1.5mA.
Features
Two selectable differential input channels.
Low-noise PGA with 32, 64, 128 gain options.
Built-in regulator for load-cell and ADC power.
On-chip oscillator, optional external crystal.
Simple pin-driven controls, no programming.
10SPS or 80SPS selectable data rate.
50/60Hz noise rejection.
Low power: 1.5mA (active), 1uA (power-down).
Supply voltage: 3.3V – 5V.
Operating temp: -20°C to +85°C.
HX711 breakout board with headers, soldering needed.
Applications :
Electronic weighing scales.
DIY weight measurement projects.
Industrial automation.
Smart home weight monitoring.
Arduino & Raspberry Pi projects.
Kitchen and postal scales.
Healthcare and fitness devices.
Physical Attributes
Size: 32.6 x 15.2 x 2.3mm
Weight: 34 g
Package Includes
1 x 5kg Load Cell Weight Sensor with HX711 ADC Converter
