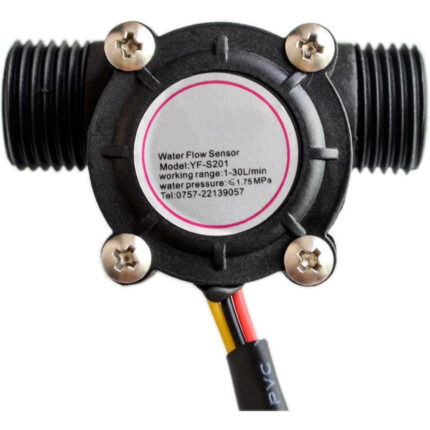

YF-S201 Water Flow Measurement Sensor
₵70.00
This is YF-S201 Water Flow Measurement Sensor with 1-30Liter/min Flow Rate – Black. This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There’s an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
1 in stock
0
People watching this product now!
Description
Technical Details
- Model Type: Water Flow Sensor
- Max Water Flow (L/min): 1 to 30
- Working Water Pressure (MPa): ≤1.75
- Operating Temperature (°C): -25 ~ +80
- Operating Humidity: 35% – 80% RH
- Accuracy: ±10%
- Duty Cycle: 50% ±10% output
- Rise Time: 0.04µsec (output)
- Pulse: 450 per liter
- Output Fall Time (µsec): 0.18
- Outer Diameter [OD] (mm): 20
- Length (mm): 62.5
- Width (mm): 36
- Height (mm): 35
- Weight (g): 50
Features
- The simple and compact module.
- Easy to install.
- High sealing performance.
- High-quality Hall effect sensor.
Connection
- Red wire: +5V
- Black wire: GND
- Yellow wire: PWM output
Applications :
- Water Flow Monitoring in Plumbing Systems: Monitors water flow rate to detect leaks or irregularities in residential and industrial plumbing systems.
- Aquarium Systems: Used to measure water flow in aquariums, ensuring proper circulation for aquatic life.
- Agriculture & Irrigation Systems: Monitors water usage in irrigation systems, helping optimize water consumption and prevent wastage.
- Water Treatment Plants: Measures water flow in treatment plants to ensure consistent operation and monitor filtration processes.
- Water Conservation Systems: Used in systems designed to conserve water, helping to track usage and optimize water distribution.
