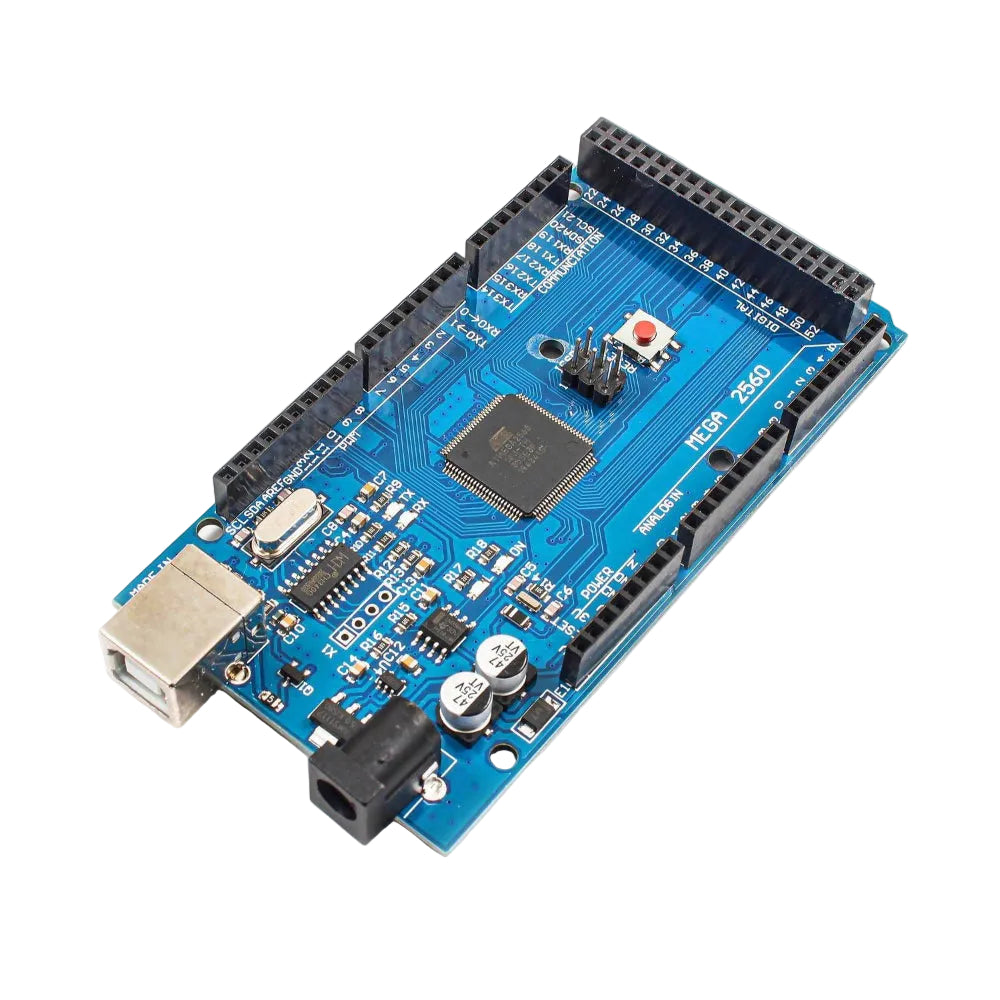

Arduino Mega 2560 ATmega2560
₵250.00
The Arduino Mega 2560 ATmega2560-16AU is a powerful development board designed for complex and large-scale electronic projects that require a high number of input and output pins. Powered by the ATmega2560 microcontroller, this board offers expanded memory, multiple communication interfaces, and excellent multitasking capability while remaining fully compatible with the Arduino IDE.
Featuring 54 digital I/O pins, 16 analog inputs, 15 PWM outputs, and 4 hardware UARTs, the Arduino Mega 2560 is ideal for robotics, industrial automation, CNC machines, and 3D printer controllers. This version uses the reliable CH340G USB-to-Serial converter and is supplied without a USB cable for flexible packaging and cost efficiency.
Out of stock
Applications
- Complex robotics and automation systems
- 3D printer and CNC controller development
- Industrial machine monitoring and control
- Large-scale sensor networks and data acquisition
- Advanced Arduino-based educational and research projects
Key Features
- Based on ATmega2560-16AU microcontroller
- CH340G USB-to-Serial communication chip
- Standard Arduino Mega R3 form factor
- Fully compatible with the Arduino IDE
- 54 digital I/O pins with 15 PWM outputs
- 4 hardware UART serial ports
- Supplied without USB cable
- Supports a wide range of Arduino shields and modules
Technical Specifications
- Microcontroller: ATmega2560-16AU
- USB to Serial Chip: CH340G
- Operating Voltage: 5V
- Recommended Input Voltage: 7V – 12V
- Input Voltage Limits: 6V – 20V
- Digital I/O Pins: 54
- PWM Output Pins: 15
- Analog Input Pins: 16
- UART Ports: 4
- Clock Speed: 16 MHz
- Flash Memory: 256 KB (8 KB used by bootloader)
- SRAM: 8 KB
- EEPROM: 4 KB
- USB Connector Type: Type-B (USB cable not included)
Physical Attributes
- Dimensions: 101.5 mm × 53.3 mm x 15mm
- Weight: Approx. 35 g
Package Includes
- 1 × Arduino Mega 2560 ATmega2560-16AU Development Board
- (USB cable not included)
