Name: 8 Channel 5V Relay Module
SKU: 725
Availability: InStock
Rating: 5.00 (1 reviews)

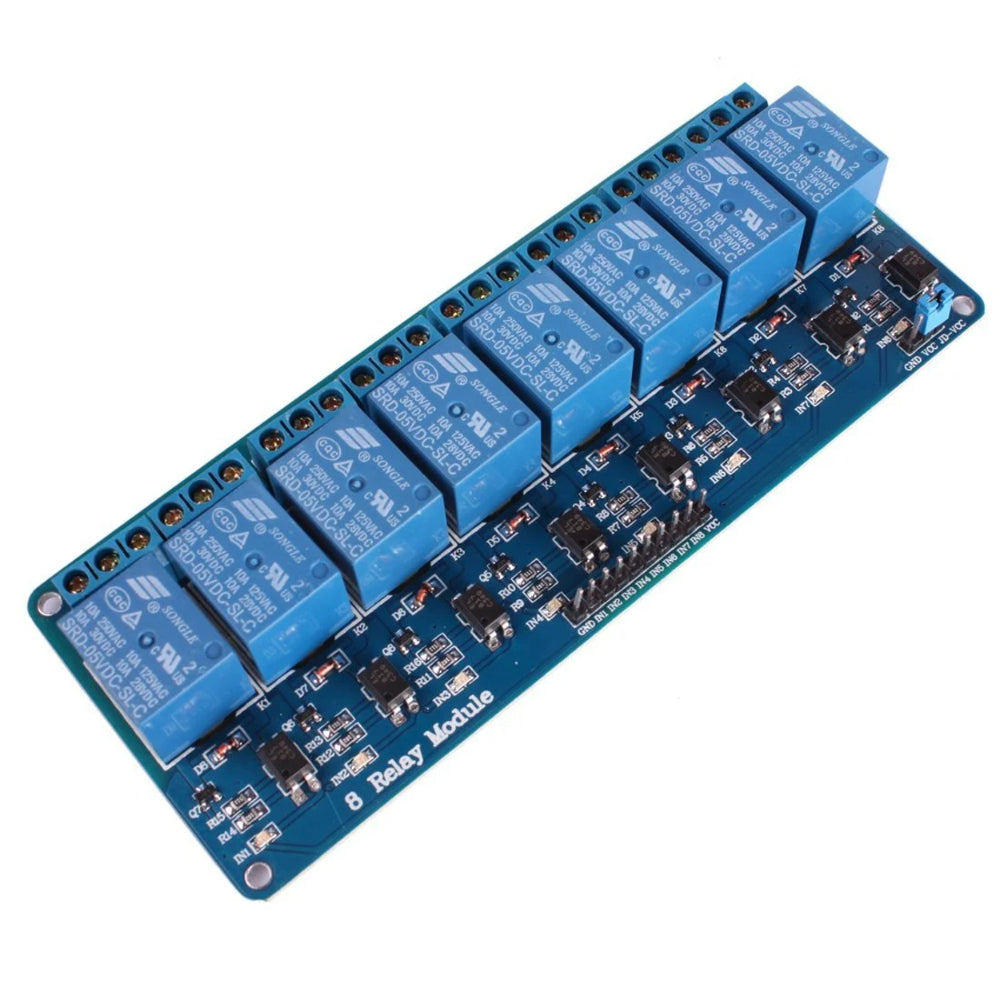

8 Channel 5V Relay Module

Rated 5.00 out of 5 based on 1 customer rating

It is a 5V 8 Channel Relay Module. The relay normally opens the interface maximum load: AC 250V/10A, DC 30V/10A. It has a trigger current of 5mA, and a module working voltage of DC 5V. Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 6-channel relay status indicator (red). All module-size interfaces can be directly connected through the terminal block, which is convenient and practical.

₵75.00

5 in stock

Ordered: 0

Items available: 5

3 people have this in their carts right now. It's running out!

Category:Sensors & Modules

Description

Reviews (1)

Technical Details

Model Type: Relay Module
No. of Channels: 8
Storage Temperature (°C): –65 to 125
Operating Temperature (°C): -40 to 85
Length (mm): 138
Width (mm): 43
Height (mm): 17
Weight (g): 102

Features

Uses 8550 transistors for driving, ensuring good driveability.
Fixed bolt holes for easy installation.
Includes a relay status indicator LED (Power LED: Green, 8 Relay Status LEDs: Red).
The relay control interface operates via single-chip IO.
Low-level activation (suction close), high-level release.
Easy to use with a simple 3-line structure.

Applications :

Home Automation – Control lights, fans, and appliances remotely.
Industrial Automation – Operate motors, solenoids, or industrial machinery.
IoT Projects – Connect with microcontrollers (Arduino, Raspberry Pi, ESP8266) for smart automation.
Smart Irrigation Systems – Control water pumps and valves for automated farming.
Security Systems – Activate sirens, door locks, or alarms based on sensor inputs.
