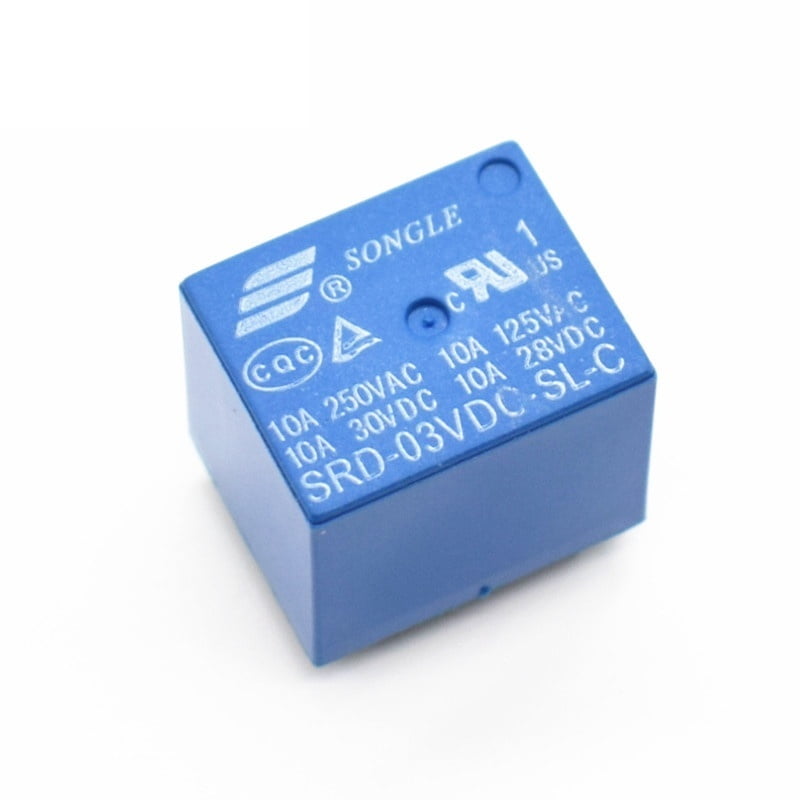

3V SPDT Relay
₵8.00
The 3V DC SL-C 5 Pin 10A Power Relay is an electrical component designed to control high-power circuits using a low-voltage control signal. It features a 5-pin configuration and operates with a 3V DC input, allowing it to switch a variety of devices on or off. With a maximum switching capacity of 10A, this relay is capable of handling moderate to high-power loads, making it ideal for applications in automation systems, control panels, or home appliances. The relay ensures reliable switching performance and is commonly used for controlling motors, lights, and other electrical equipment.
10 in stock
Technical Details
- Model: SRD-03VDC-SL-C
- Nominal Coil Voltage: 3V DC
- Max Coil Voltage: 3.3V
- Nominal Coil Current: 71.4mA
- Coil Resistance: 70Ω (±10%)
- Structure: Sealed
- Power Consumption: 0.36W
- Pull-in Voltage: 75% max
- Drop-out Voltage: 10% min
- Contact Capacity (Resistive): 10A @ 28V DC or 240V AC
- Contact Capacity (Inductive): 5A @ 28V DC or 120V AC
- Max Contact Voltage: 250V AC or 110V DC
- Max Contact Power: 300W
- Contact Resistance: 100mΩ
- Operation Time: 10ms max
- Release Time: 5ms max
- Life Expectancy (No Load): 10^7 operations min
- Life Expectancy (Rated Coil Voltage): 10^5 operations min
- Dimensions (Excluding Pins): 19.1 x 15.5 x 15.3mm
Features
- Nominal Coil Voltage: 3V DC
- Power Consumption: 0.36W
- Contact Capacity: 10A @ 28V DC
- Max Contact Power: 300W
- Fast Operation Time: 10ms max
- Long Life Expectancy: 10^7 operations (no load)
- Sealed Structure for durability
Applications :
- Automated Control Systems: Control high-power devices like motors, lights, and fans with low voltage signals.
- Home Automation: Control household appliances like lights and air conditioners using sensors or timers.
- Microcontroller Projects: Switch devices like solenoids or pumps in Arduino or Raspberry Pi projects.
- Industrial Machinery: Automate and control industrial machinery in large systems.
- Remote Control Systems: Switch high-power equipment on/off remotely with low-power signals.
- Car Electronics: Control vehicle components like lights and horns in automotive systems.
- Temperature Control: Activate heating or cooling systems based on temperature thresholds.
- Alarm Systems: Trigger sirens or devices when alarms are activated.
- Power Distribution Systems: Switch power between circuits or components in distribution systems.
- Testing & Prototyping: Simulate high-power switching for testing and prototyping in electronics.
Physical Attributes
- Dimensions (Excluding Pins): 19.1 x 15.5 x 15.3mm
- Weight (gm): 7
Package Includes
- 1 x 3V DC SL-C 5 Pin 10A Power Relay
