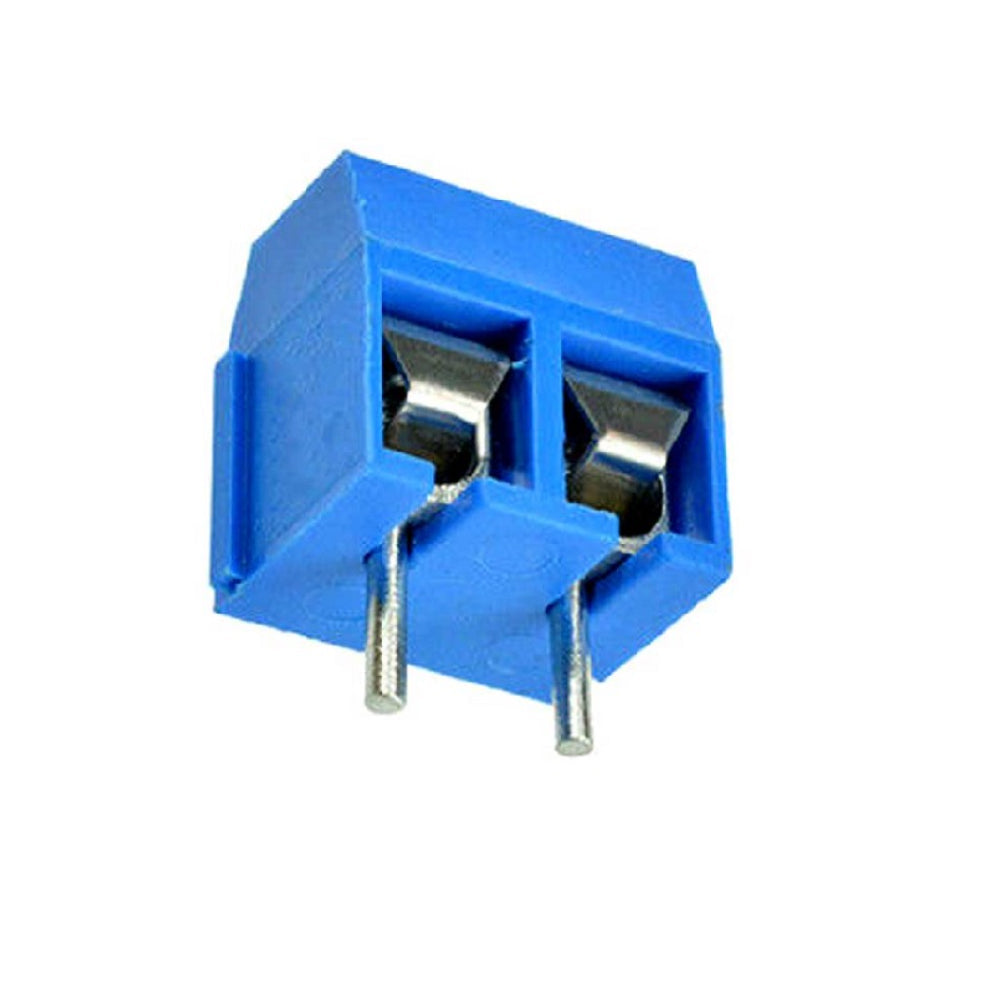

2 Pin Plug-in Screw Terminal Block
₵2.50
The Plug-In Screw Terminal Block Connector with various pin configurations and a 5.08mm pitch is a versatile and practical electronic component designed for easy and secure electrical connections in electronic circuits.
30 in stock
Here’s a Detailed Description:
Plug-In Design: The connector features a plug-in design, allowing cables or wires to be easily inserted and secured without the need for soldering. This facilitates quick and convenient installation and maintenance.
Screw Terminal Block: The connector utilizes a screw terminal block mechanism for wire termination. This means that wires are secured by tightening screws, ensuring a reliable and vibration-resistant connection. The screw terminals provide a simple yet effective method for making electrical connections without specialized tools.
Pin Configurations: The connector is available in various pin configurations, including 2, and 3 pins. This flexibility allows users to choose the specific pin count that suits their application requirements.
5.08mm Pitch: The connector has a 5.08mm pitch, indicating the center-to-center spacing between adjacent pins. This pitch is standard in many electronic applications and provides a good balance between compactness and ease of use.
Easy Installation: The plug-in design and screw terminal block make installation straightforward. Users can quickly connect or disconnect wires without the need for special tools, making it user-friendly and time-efficient.
Secure Connection:
The screw terminals provide a secure and stable connection, reducing the risk of accidental disconnections. This is especially important in applications where vibration or movement may be present.
Features
- Pin header: Tin-plated brass.
- Contacts: Nickel-plated brass.
- Strong, compact, lightweight.
- Heat resistant.
Technical Details
- Item Type : PCB Terminal Block
- Rated Current (A): 10
- Rated Voltage (V): 220
- Allowed Wire Size Range (AWG): 24 ~ 16
- Termination: Screw
- No. of Contacts: 2
- Mounting Type: Through Hole
- Pin Spacing (mm): 5.08
- Material: Metal and plastic
Package Includes
- 1 x 2 Pin Plug-in Screw Terminal Block Connector Pitch 5.08mm
