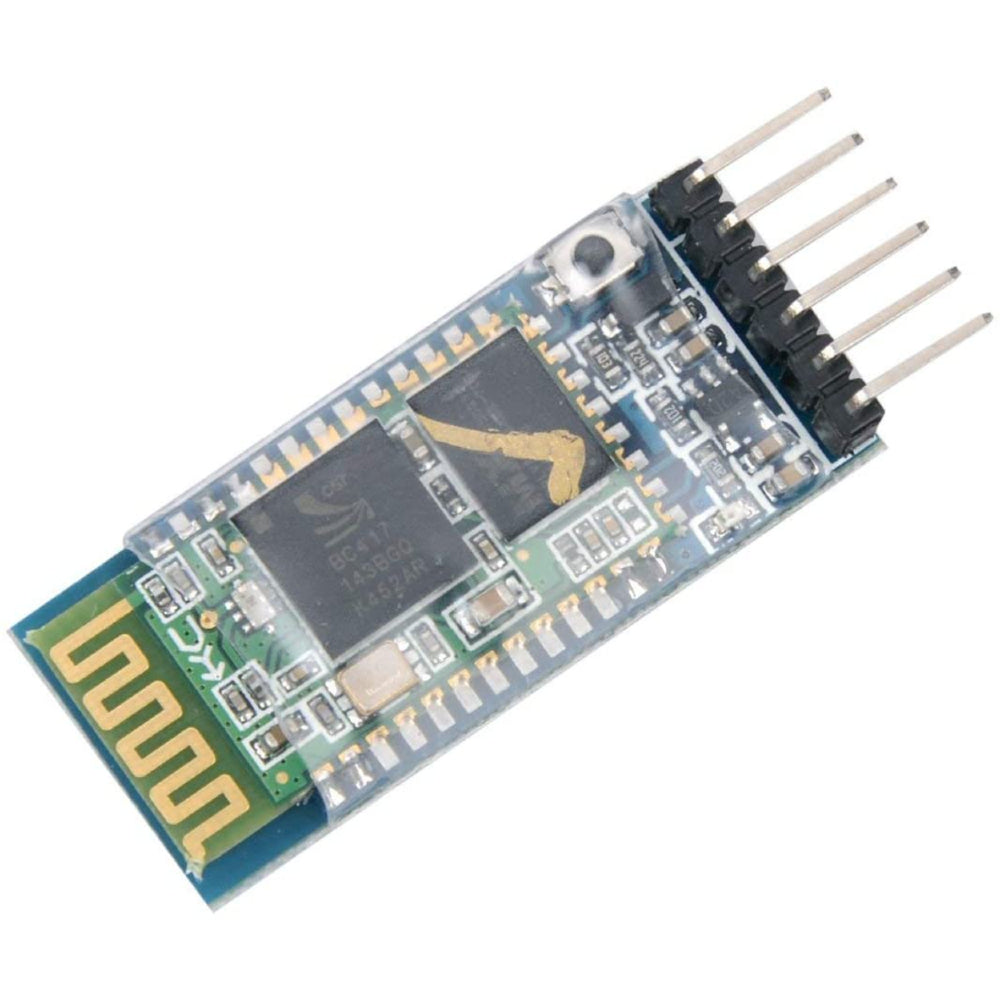

HC05 Bluetooth Module
Original price was: ₵60.00.₵55.00Current price is: ₵55.00.
HC-05 6 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller. It uses the UART protocol to make it easy to send and receive data wirelessly.
The HC-06 module is a slave only device. This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.
6 in stock
Specifications
- Item Type: HC Series Module
- Voltage Rating (VDC): 3.6 to 6
- Switch/Button: Yes
- Input Supply Voltage (V): 3.6 ~ 6
- Input current (mA): 50
- Max. Operating Range (m): 10
- Operating Frequency (Hz): 2.4GHz ISM band
- Modulation Type: GFSK (Gaussian Frequency Shift Keying)
- Emission power: 4dBm, Class 2
- Sensitivity (dBm): -84dBm at 0.1% BER
- Length (mm): 43
- Width (mm): 16.5
- Height (mm): 7
- Weight (g): 5
Features
- Working current: Matching for 30 mA, matching the communication for 8 mA
- Dormancy current: No dormancy
- Used for a GPS navigation system, water, and electricity gas meter reading system
- Compatible with computer and Bluetooth adapter, PDA, seamless connection equipment
- Bluetooth module HC-08: Master and slave two-in-one module
- Uses the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards
- Potter default baud rate of 9600, user-configurable
- Bluetooth protocol: Bluetooth Specification v2.0+EDR
- Speed: Asynchronous: 2.1Mbps (Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
- Security: Authentication and encryption
- Profiles: Bluetooth serial port
Applications :
- Wireless Data Transmission: Send and receive data between devices such as microcontrollers, smartphones, or computers.
- Home Automation: Control home appliances like lights, fans, and security systems via Bluetooth from a mobile device.
- Wireless Robotics: Enable wireless control of robots or drones using Bluetooth communication.
- PC to Microcontroller Communication: Establish communication between a PC and microcontroller (e.g., Arduino) for data exchange.
- Sensor Monitoring: Wirelessly transmits sensor data (temperature, humidity, etc.) to a mobile app or PC.
Physical Attributes
- L * W * H in mm : 43 * 16.5 * 7
- Weight in gm: 5
