DC Power Jack

Here are Descriptions :

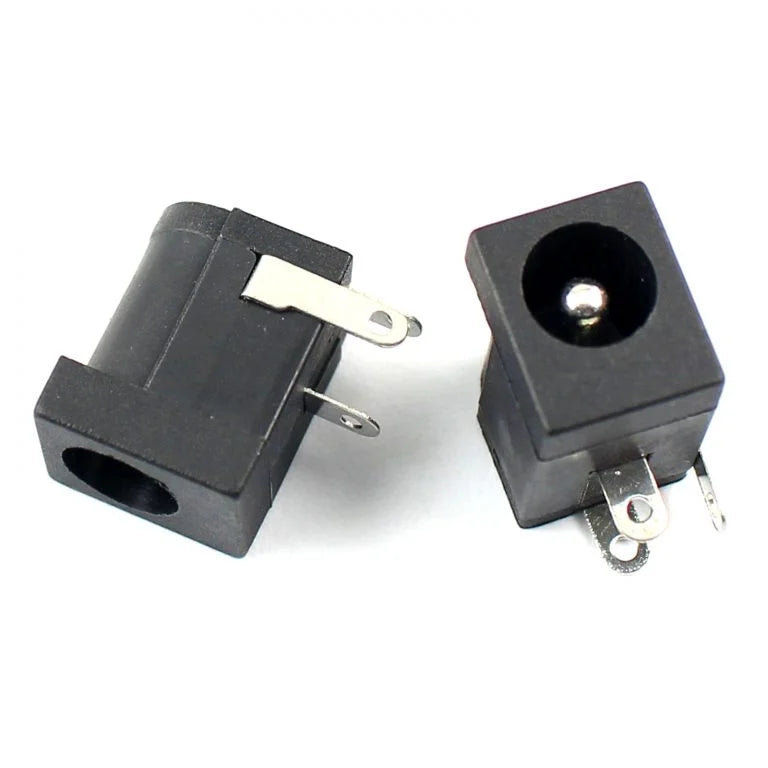

Connector Type: The Power Jack PCB features a female connector with a barrel-type design. The dimensions of the barrel connector are 5.5 x 2.1 mm, indicating the outer and inner diameters, respectively.

PCB Mounted: Designed for through-hole mounting on a printed circuit board (PCB). This means it is soldered onto the PCB for a secure and stable connection.

Polarity: The Power Jack PCB may have a specific polarity, indicating whether the center of the connector is positive or negative. This information is crucial for ensuring compatibility with the power supply.

Mounting Holes: The PCB-mounted power jack may have holes or pins for secure attachment to the PCB. These holes or pins facilitate the soldering process during assembly.

Applications of Power Jack PCB:

Commonly used in a variety of electronic devices such as routers, modems, power supplies, and other gadgets that require an external power source.

Dimensional Drawing

Technical Details of DC Jack PCB mount

• Plug Type : 5.5 x 2.1 mm
• No. of Pin : 3
• Operating Temperature (℃) : -30 ~ +70
• Rated load : DC 30V / 1.0A
• Contact resistance: ≤0.03
• Insulation Resistance (MΩ) : ≥100
• Compatible with: 5.5 mm jack

Physical Attributes of DC Jack PCB mount

• Center Pole Diameter (mm ): 2.1
• Compatible with: 5.5 mm jack

Package includes

• 1 x Power Jack PCB Mounted Female Adaptor 5.5 x 2.1 mm
