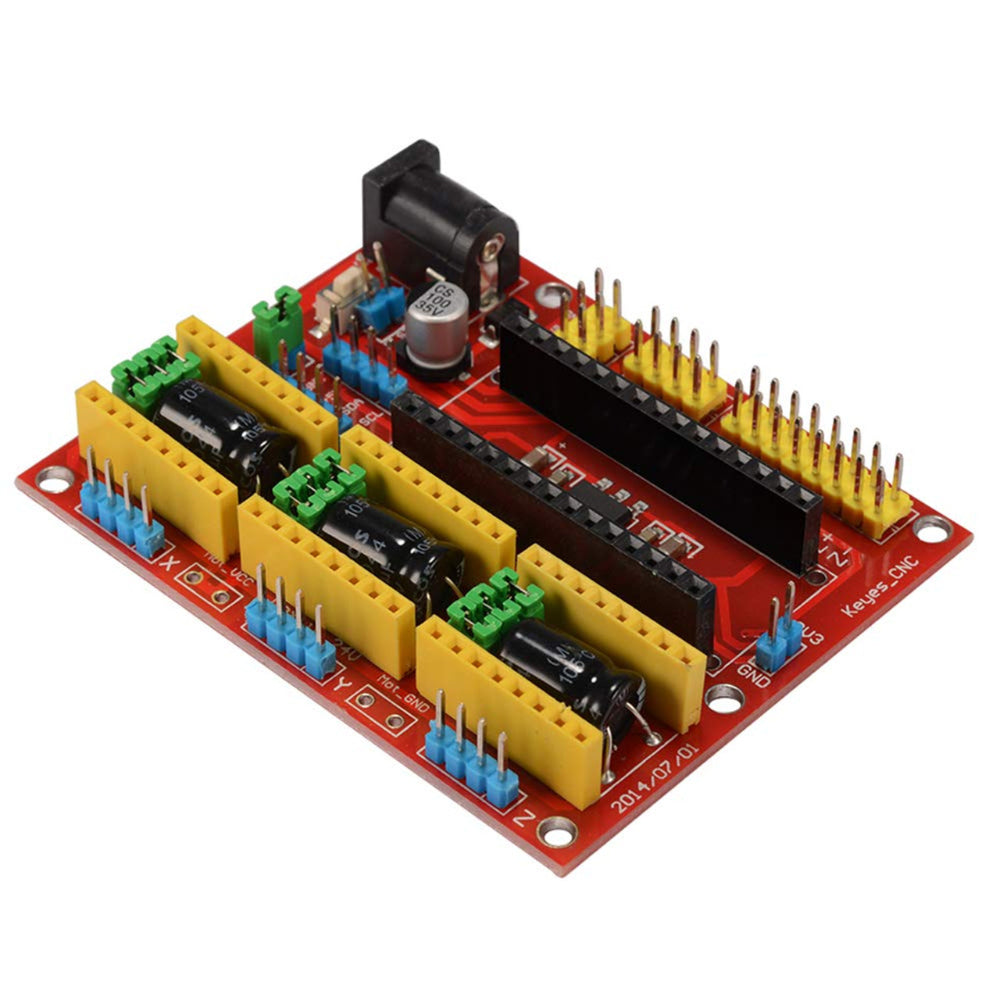

3D Printer CNC Shield V4 Expansion Board For Arduino
Original price was: ₵80.00.₵70.00Current price is: ₵70.00.
This CNC Shield V4 is a stepper motor driver expansion board designed to work with the Arduino Nano. It is an excellent solution for controlling stepper motors in 3D printers and engraving machines. The shield features 3 channel slots compatible with A4988 stepper motor driver modules (not included), enabling control of up to 3 stepper motors. Each motor requires only 2 IO ports, so just 6 IO ports are needed to drive all three motors, optimizing pin usage efficiently.
This shield simplifies stepper motor management, making it ideal for DIY CNC or 3D printer projects. Its compact design and ease of use allow for quick installation and integration, helping you bring motion control to your custom builds with minimal wiring and coding complexity.
2 in stock
Technical Details
- 3-Axis Stepper Motor Driver
- Compatible with micro-drive laser engraving machines and three-axis CNC engraving machines
- Supports 2A two-phase four-wire stepper motors
- Released digital IO interface for easy connection to other modules (e.g., ENDSTOP)
- Released I2C interface for connecting LCD I2C or other I2C modules
- Power Supply: DC 5V interface with 7.5–12V voltage input
- GRBL compatible firmware
- Designed to work with Arduino Nano
Features
- 3-Axis stepper motor driver module
- Compatible with micro-drive laser engraving machines and three-axis CNC engraving machines
- Controls 2A two-phase four-wire stepper motors
- Exposed digital IO interface for easy module connection (e.g., ENDSTOP)
- Exposed I2C interface for LCD displays or other I2C modules
- Power input via DC 5V interface (supports 7.5V–12V)
- Fully GRBL compatible
- Optimized for Arduino Nano integration
Applications :
- DIY CNC engraving machines
- Mini laser engravers
- 3D printer motion control systems
- Educational robotics and automation projects
- Hobbyist CNC/laser control platforms
Physical Attributes
- Length: 73 mm
- Width: 59 mm
- Height: 12 mm
- Weight: 35 g
Package Includes
- 1 x 3D Printer CNC Shield V4 Expansion Board For Arduino
