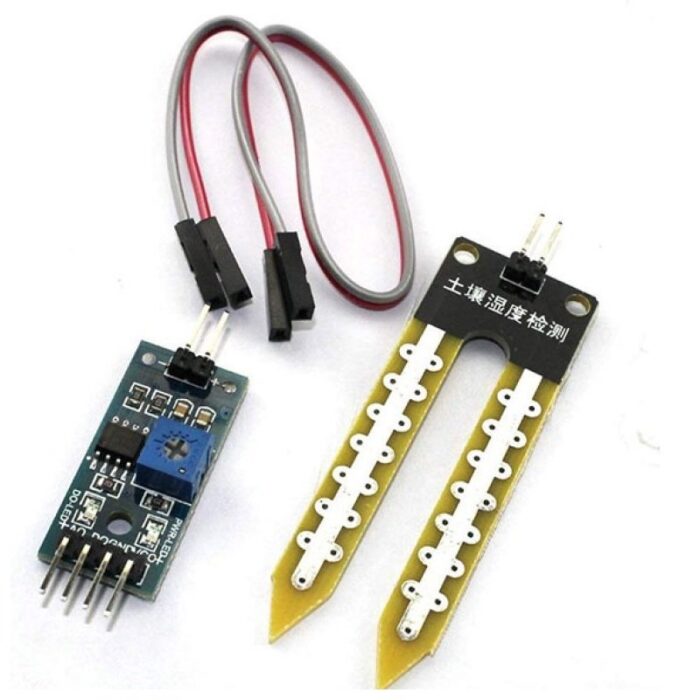

Soil Moisture Sensor

Soil Moisture Sensor is used to detect moisture. This is very sensitive to the ambient humidity. When the soil is dry the module outputs a high level, otherwise outputs low.  This sensor can be used to make an automatic watering system, so that garden plants can be watered without people to manage.

SKU: 94

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

15.00

14 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

1-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Technical Specifications

  •  Sensitivity adjustable using potentiometer
  •  Operating voltage: 3.3V – 5V
  •  Dual output mode: digital output, the analog output being more accurate.
  •  Fixed bolt hole for easy installation
  •  PCB size: 3cm * 1.6cm
  •  Power indicator (red) and digital switching output indicator (green)
  •  Comparator LM393 chip

Interface Description (4-wire):

1. VCC: 3.3 V-5V
2. GND: GND
3. DO: digital output interface (0 and 1)
4. AO: Analog Output Interface

The threshold value can be set through potentiometer adjustment. DO port outputs high when the soil humidity exceeds the set threshold value, else it remains zero. Analog output AO connected through the AD converter can be used for more precise values of moisture level.
